Big Brake Kit For BMW M3 18inch wheel brake sytem brake parts
calipers
What is included in the brake package:
High performance radial mount calipers (Forged 6061-T6 alloy)
2-pcs floating rotors with alloy hats (full-floating rotors
available)
Teflon/stainless steel DOT/ADR compliant brake lines (made in UK)
Direct bolt-on caliper mounting brackets and bolts
Brake pads (Can also be purchased from other brands)
All necessary mounting hardware for direct bolt-on install
Make sure you select a size similar or bigger than stock for the
rotor diameter.
If you want a kit smaller than stock for lightweight race or street
application contact our expert team to check for clearances issues
first.
Feel free to contact us to have pdf template files emailed to you
to print and check clearances in your wheels.
WARRANTY:
10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT/ADR approved
10,000km / 3 months on rotors.
Package size:42*42*42cm
Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49
ROTOR SPECS:
2-piece floating rotors with 6061-T6 aerospace grade alloy hat.
Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no
extra cost.
(We advise drilled for street and slotted only for track and race
applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system
(removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the
rotor ring centers itself with the pads.
Available for 330mm rotors and bigger only.
The semi-floating rotor uses standard bolts instead and the rotor
is fixed on the hat.
Custom rotor hat anodized color

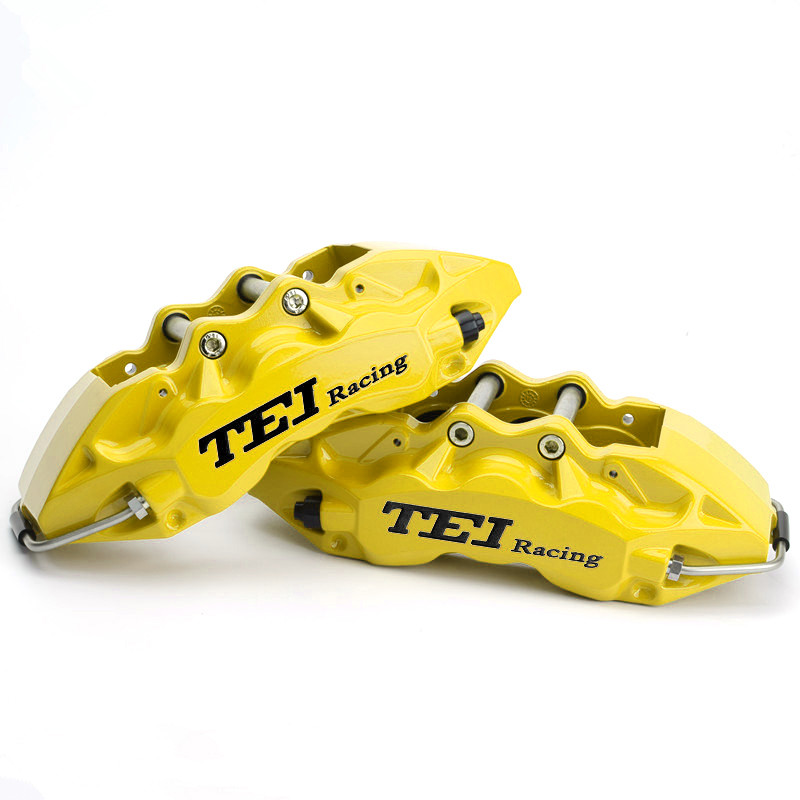

| Big Brake kit Model P60S |
| Brand | TEI | Craft | Two-piece Forged Body | Caliper Length | 289mm |
| Model | P60S | Caliper Material | Aerial 6082 Aluminum Alloy | Caliper Width | 165mm |
| Pistons | 6 POTS | Piston Material | Aluminum Alloy | Caliper Height | 88mm |
| Logo | Carved | Piston Diameter | 38.1mm 31.8mm 27mm | Caliper Weight | 3.2kg/pcs |
The number of pots of the calipers will also play a role in term of
pressure applied on the pads to make the contact as good as
possible on the rotors. In order to fit the caliper on your
original chassis, TEI Racing provides caliper brackets to position
the calipers with your new braking system, making the perfect set
up for your car brakes system.
Go fast and stop faster. TEI Racing Big Brake Kits provide you with
serious braking power when you need it most. TEI Racing brake kits
are offered for both the front and rear brakes with rotor sizes
ranging from 285mm-405mm drilled or slotted or drilled and slotted,
2-6 piston Forged Monoblock aluminum caliper options, and custom
colors. Stainless steel brake lines, brake pads, and all hardware
are included for a direct bolt-on installation where no
modifications are required.
TEI Racing Monoblock calipers are precision machined from aircraft
quality billet aluminum and feature heavy duty aluminum pistons
mated to temperature resistant seals. These high performance
calipers are able to utilize a lightweight construction while
providing dramatically increased braking performance. The rotors
included in TEI Racing big brake kits features a two-piece design
with drilled or slotted surfaces which help minimize fade and
dissipate heat under the most extreme braking.
| TEI Racing Rotor Size | Minimum Inch Wheel Size |
| 285*24mm | 15inch wheels |
| 300*24mm | 16inch wheels or above |
| 300*28mm | 17inch wheels or above |
| 330*28mm | 17inch wheels or above |
| 345*28mm | 18inch wheels or above |
| 355*32mm | 18inch wheels or above |
| 378*32mm | 19inch wheels or above |
| 405*34mm | 20inch wheels or above |
Installation Info
Installation Time
(approx) 4 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
