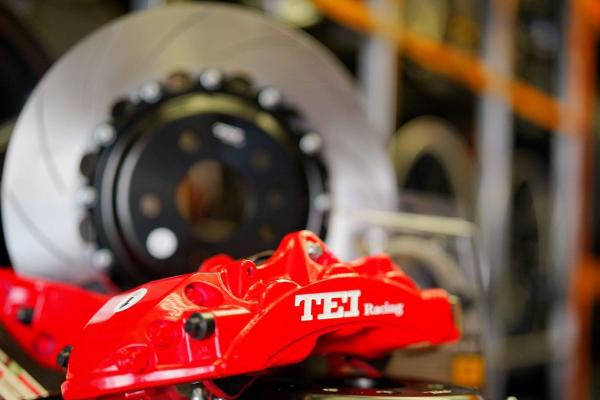

TEI Racing S60 6 Piston Forged Caliper with 405*34mm rotor Big
Brake Kit For VW Golf 20inch wheel
Product Detail:
| Brand | TEI | Craft | One-piece Forged Body | Caliper Length | 289mm |
| Model | S60 | Caliper Material | Aerial 6082 Aluminum Alloy | Caliper Width | 165mm |
| Pistons | 6 POTS | Piston Material | Aluminum Alloy | Caliper Height | 88mm |
| Logo | Carved | Piston Diameter | 38.1mm 31.8mm 28.6mm | Caliper Weight | 3.52kg/pcs |
2x Calipers ( Red/Blue/Yellow/Green/Black/Silver)
2x Disc(Drilled/Slotted/Drilled and Slotted)
2x Brake lines
2x Adapters
2x Center hub( hat)
4x Brake pads
Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49
Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy
Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC
Brake Hose/Brake line
Material: Inside teflon, Braided Stainless steel mid layer
,Protective outer PVC weather proof shell
BELOW IS A LIST OF AUTOMOBILES THE 09-13 VOLKSWAGEN GOLF GTI MK6
| Year | Make | Model |
|---|
| 2009 | Volkswagen | Golf GTI |
| 2010 | Volkswagen | Golf GTI |
| 2011 | Volkswagen | Golf GTI |
| 2012 | Volkswagen | Golf GTI |
| 2013 | Volkswagen | Golf GTI |
The number of pots of the calipers will also play a role in term of
pressure applied on the pads to make the contact as good as
possible on the rotors. In order to fit the caliper on your
original chassis, TEI Racing provides caliper brackets to position
the calipers with your new braking system, making the perfect set
up for your car brakes system.
Go fast and stop faster. TEI Racing Big Brake Kits provide you with
serious braking power when you need it most. TEI Racing brake kits
are offered for both the front and rear brakes with rotor sizes
ranging from 285mm-405mm drilled or slotted or drilled and slotted,
2-6 piston Forged Monoblock aluminum caliper options, and custom
colors. Stainless steel brake lines, brake pads, and all hardware
are included for a direct bolt-on installation where no
modifications are required.
TEI Racing Monoblock calipers are precision machined from aircraft
quality billet aluminum and feature heavy duty aluminum pistons
mated to temperature resistant seals. These high performance
calipers are able to utilize a lightweight construction while
providing dramatically increased braking performance. The rotors
included in TEI Racing big brake kits features a two-piece design
with drilled or slotted surfaces which help minimize fade and
dissipate heat under the most extreme braking.
| TEI Racing Rotor Size | Minimum Inch Wheel Size |
| 285*24mm | 15inch wheels |
| 300*24mm | 16inch wheels or above |
| 300*28mm | 17inch wheels or above |
| 330*28mm | 17inch wheels or above |
| 345*28mm | 18inch wheels or above |
| 355*32mm | 18inch wheels or above |
| 378*32mm | 19inch wheels or above |
| 405*34mm | 20inch wheels or above |
Installation Info
Installation Time
(approx) 4 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
