P40NS+ 4 PISTON CALIPER FRONT BRAKE KIT WITH 355 MM ROTOR
| Product Type | P40NS+ Front Brake Kit |
| Piston Quality | 4 Piston |
| Piston Area | 49.56 cm2 |
| Piston Material | Alumium Alloy |
| Caliper Parameter | 294 X 152 X 83.8 MM |
| Caliper Weight | 3.2 KG/pcs |
| Caliper Material | Aerial |
| Manufacuring Craft | By Forging+CNC |
| Color Finish Treatment | High-temperature Baking Coating |
| Optional Colors | Red/Yellow/Sliver/Customized as required |
| Fitting Wheel Size | 18 Inch |
| Fitting Disc Size | 355 X 28 mm |

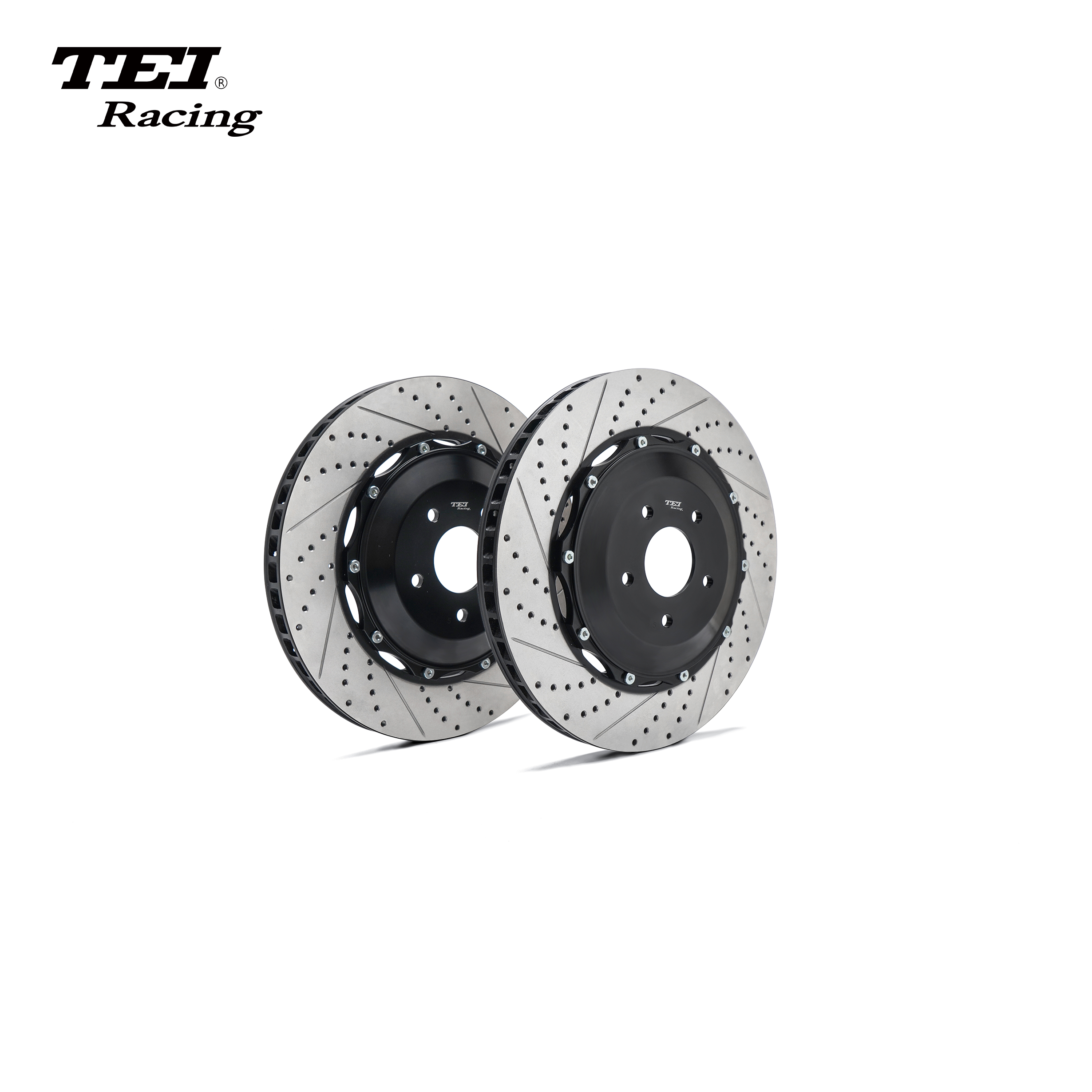

| Brake Disc Rotor(Disc+Center Hub) |
| Disc Material | High-Carbon Iron |
| Disc Craft | By casting |
| Plane Bounce | <0.03 mm |
| Center Hub Material | Aerial aluminum alloy |
| Center Hub Craft | By CNC manufacturing |
| Center Hub Color | Black/Sliver or Customized as required |
| Adapter+Brake line+Brake pads |
| Adapter Material | Aerial aluminum alloy |
| Adapter Craft | By CNC manufacturing |
| Adapter Color | Black/Sliver/Customized |
| Brake Pad Material | Ceramic+Graphite |
| Brake Pad Friction Coefficient | 0.38-0.42(Ceramic)/0.42-0.48(Metal) |
| Brake Pad Size | 131.8 X 67 X 17 mm |
| Brakeline Material | Steel wire outside and special rubber inside |
| Heat-Resistant | 0-700 Degree |

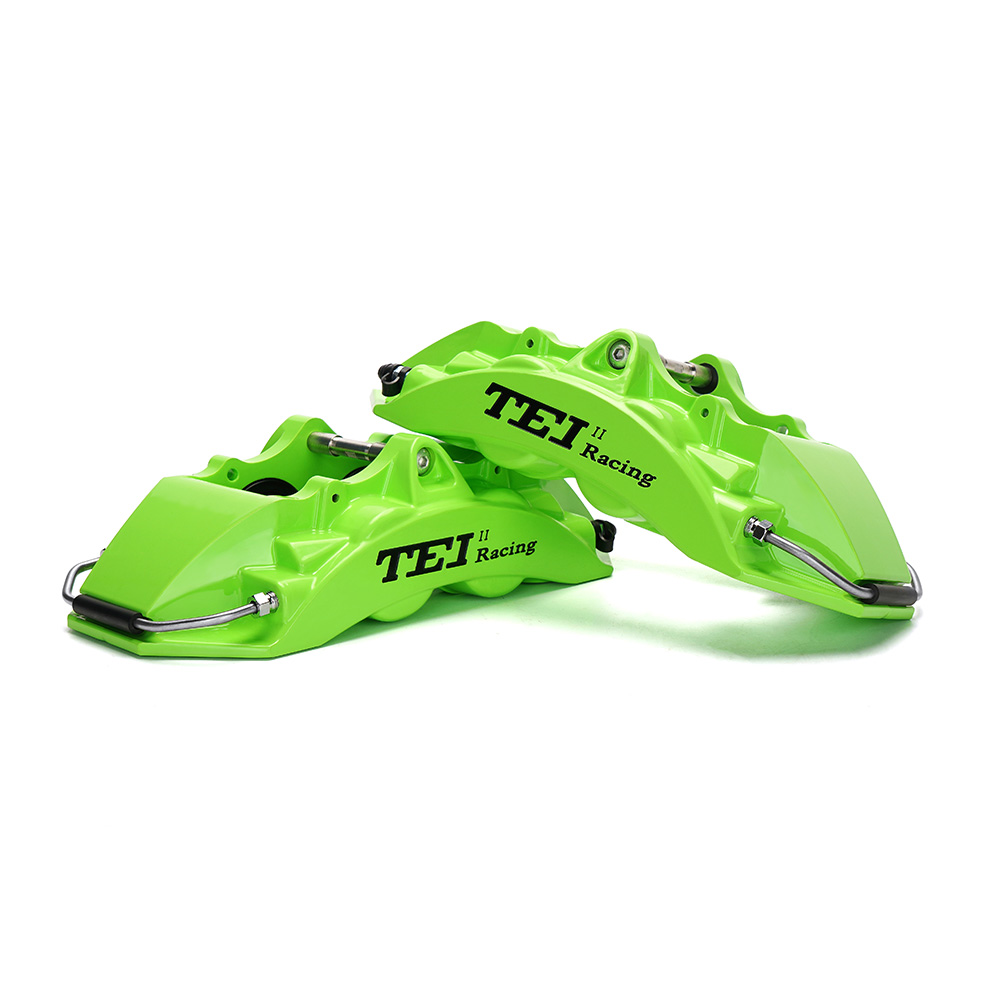

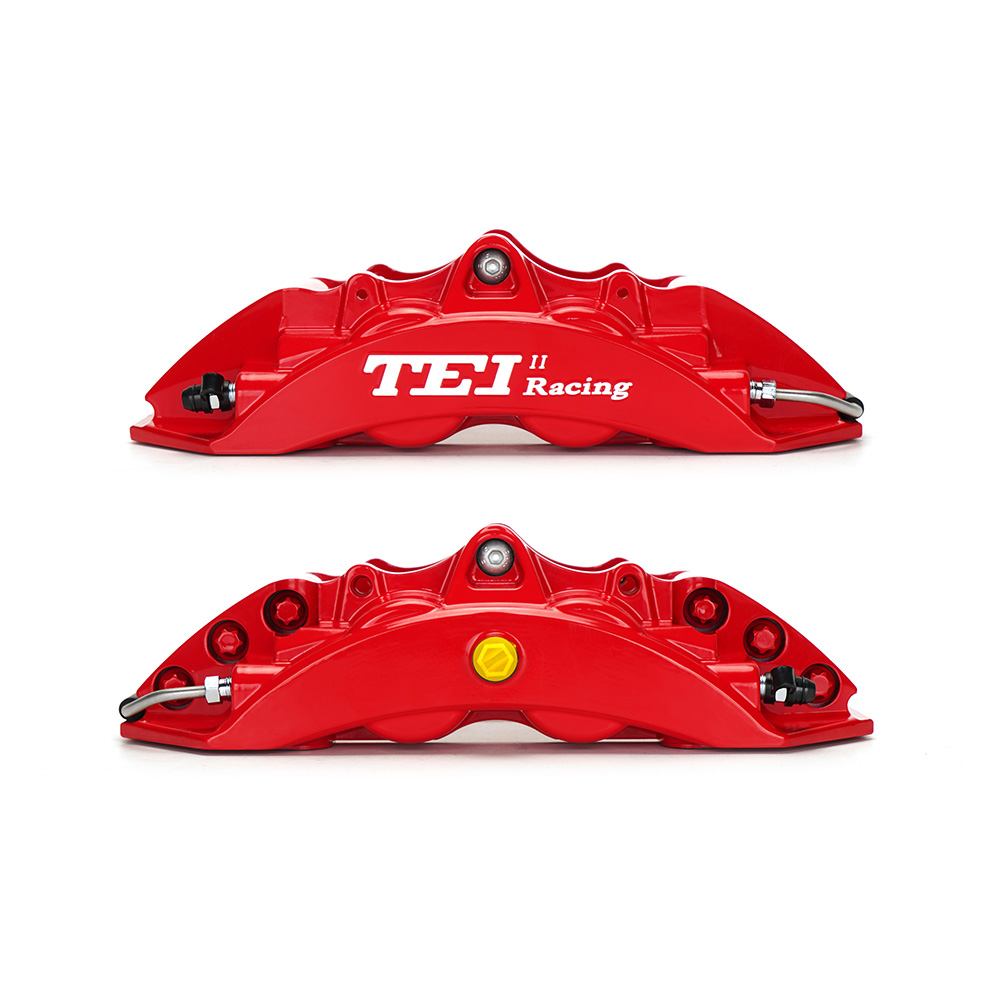

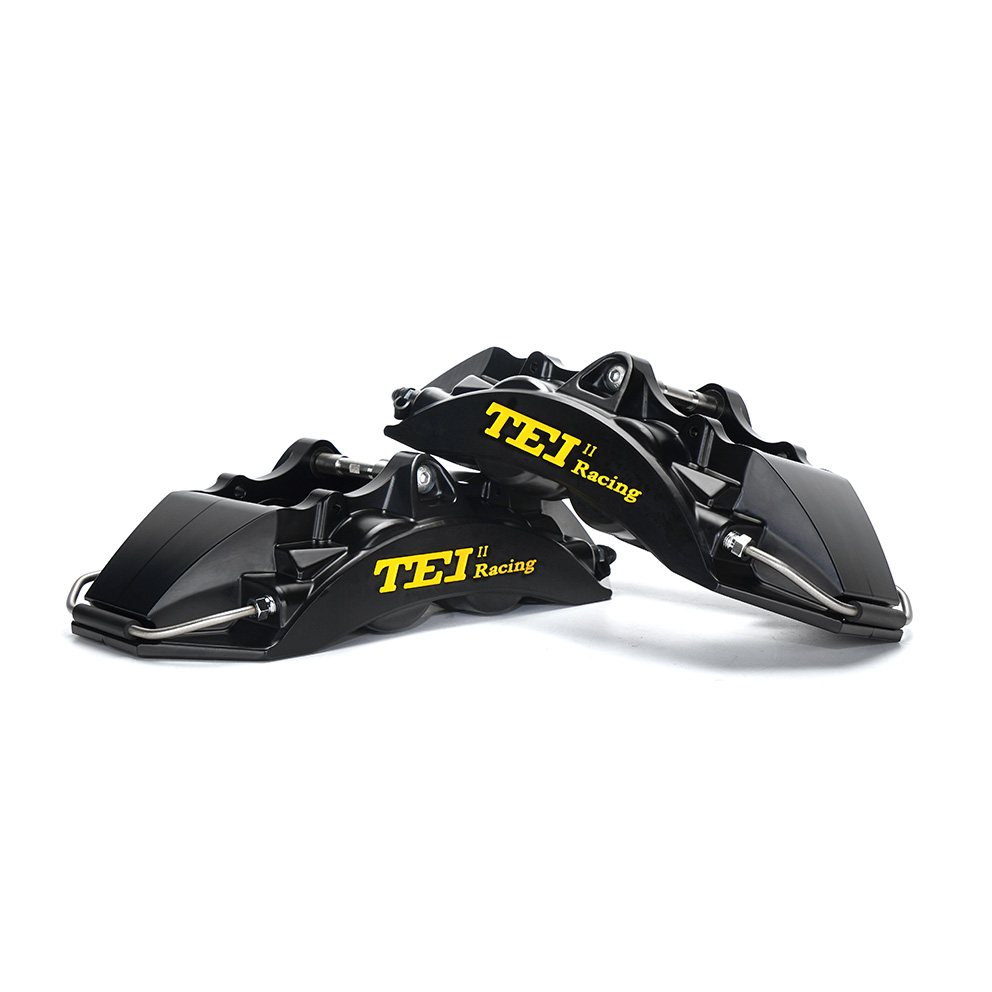

2x Calipers ( Red/Blue/Yellow/Green/Black/Silver)
2x Disc(Drilled/Slotted/Drilled and Slotted)
2x Brake lines
2x Adapters
2x Center hub( hat)
4x Brake pads
Tei Racing launched the fourth -generation new P -series brake kit,
which
has carried out a broad -scale innovation. The sales volume has
risen all
the way, which is loved and recognized by the majority of car
owners. After
updating the NS version, the foot feel is more sensitive, radical,
and sports,
optimize the matching of product spare parts, reduce the chance of
the
incidence of noise to achieve the best performance and comfort.
P40ns+ four -piston brake caliper kit to upgrade multiple aspects;
The new internal design structure, large and small piston
arrangement
design, making braking foot feel, more sensitive, radical,
exercise;
To ensure that each brake can give the driver's driving control
experience calmly and confidently.
The division forging process is processed by precision CNC. At the
same time, it
has excellent braking and heat dissipation performance, and the
weighing of the
streamlined caliper is as low as 3.2kg.
The friction area of the brake pads has been upgraded from 48mm in
the
previous generation to 52mm. The streets are mute and comfortable
braking
skin, and high -end ceramic materials have achieved a good balance
in noise,
dust, and performance, performing excellent performance. At the
same time,
the brake pads alarm line slot is added, which is more compatible
with the original factory.
The appearance of the calipers adopts a new high -temperature paint
process, making the paint surface more bright and lasting. Even in
harsh environments, there will be no fading or fading. At the same
time, the logo adopts relief design, highlighting the brand's
uniqueness.
The improvement part of the more attention is the piston. The
interior uses
dual oil seal and delays the external dust cover structure, which
enhances
the sealing and greatly reduces the chance of the brakes in the
piston work
parts in daily use. Longer. The size of the piston is 38mm*2
/41mm*2 with
a total area of 49.56cm².
The size of the brake disk provides a 355 × 28mm option to solve
the problem
of small piston fuel supply in most 18 -inch wheels. With a large
-sized brake
disc to improve the brake arm, the visual effect is more impactful.
Provide 6 color options
