High Performance BBK For BMW 6 Series GT 20 Inch Car Rim Front 6
piston and rear 4 piston caliper brake kits to keep EBP
BMW 6 SERIES GT G32 2016+ year
It can be installed our front and rear brake kit
Minimum Rear Upgrade Rotor Size is 370 mm,double caliper minimum
rotor size is 355 mm
Electric handbrake
The original wheels do not need to add Spacers.
(If you are not sure,you can provide your car ET value and we can
check it for you)
BMW 6 Series GT, BMW 5 Series GT replacement model, and included in
the 6 Series product sequence for sales. This model will be created
with the CLAR platform with the BMW 5 Series. At the Frankfurt Auto
Show, which opened in September 2017, made a official appearance.
In terms of power, there are two power versions. The 30 version is
equipped with a 2.0T engine with a 8AT gearbox and a maximum
horsepower of 258PS; the 40 version is equipped with a 3.0T engine
with a 8AT gearbox, with a maximum horsepower of 340ps. The price
range of the entire department is between 71.08-8738,800 yuan.

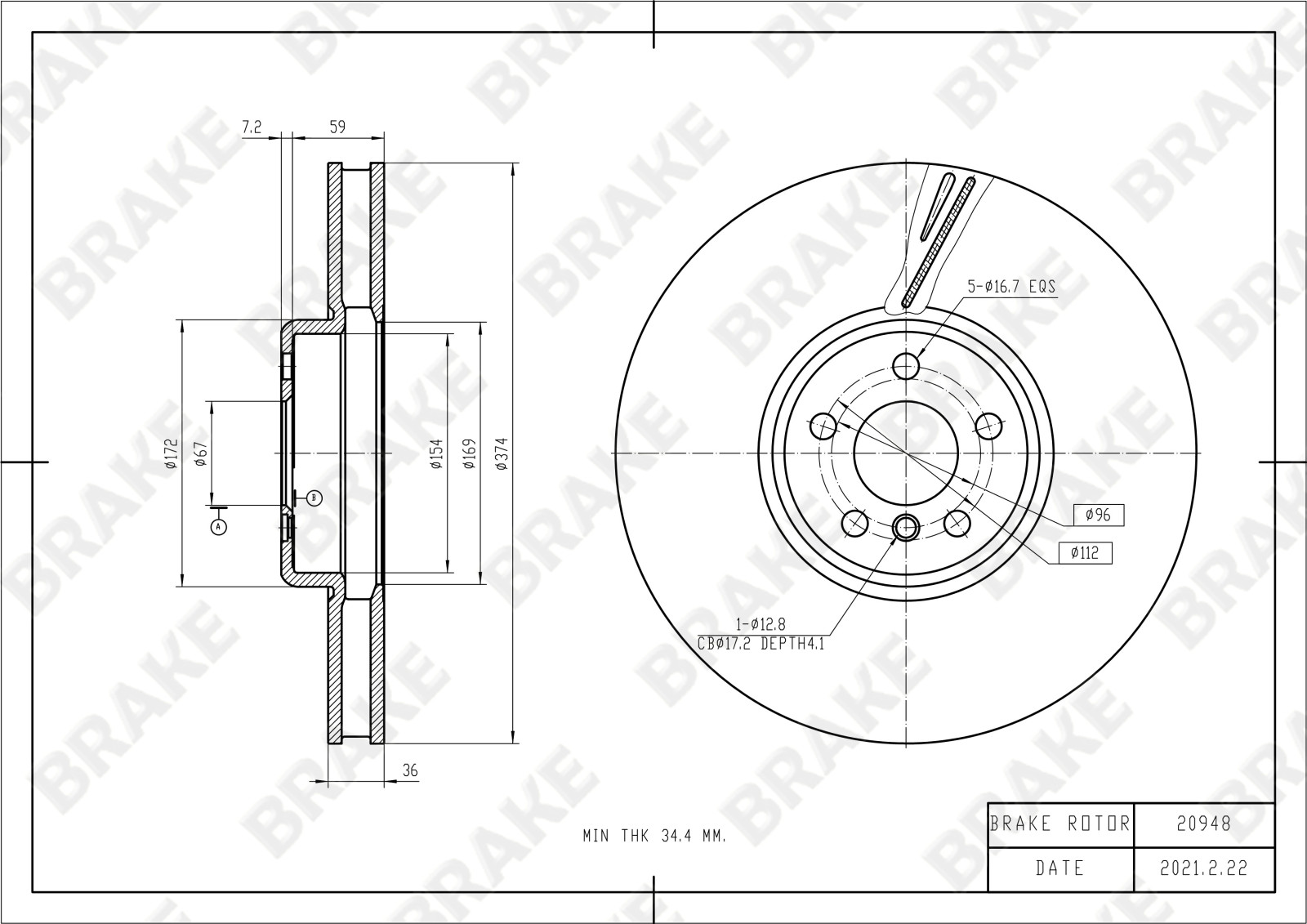

Orginal Brake Rotor Information
Front:
| Front Original Rotor Information |
| Brake Rotor model | 20946(20948) |
| Rotor Diameter | 348 mm(374 mm) |
| Rotor Hat Diameter | 112 mm |
| Central Hole Diameter | 67 mm |
| Disc Thickness | 30 mm(36 mm) |
| Minimum Disc Thickness | 28.4 mm(34.4 mm) |
| Total Height | 66 mm |
| Number of Positioning Holes | 5 |
| Disc type | Ventilation |
| Rear Original Rotor Information |
| Brake Rotor model | 20945(20957) |
| Rotor Diameter | 345 mm(330 mm) |
| Rotor Hat Diameter | 112 mm |
| Central Hole Diameter | 67 mm |
| Disc Thickness | 24 mm(20 mm) |
| Minimum Disc Thickness | 22.4mm(18.4 mm) |
| Total Height | 64 mm |
| Number of Positioning Holes | 5 |
| Disc type | Ventilation |

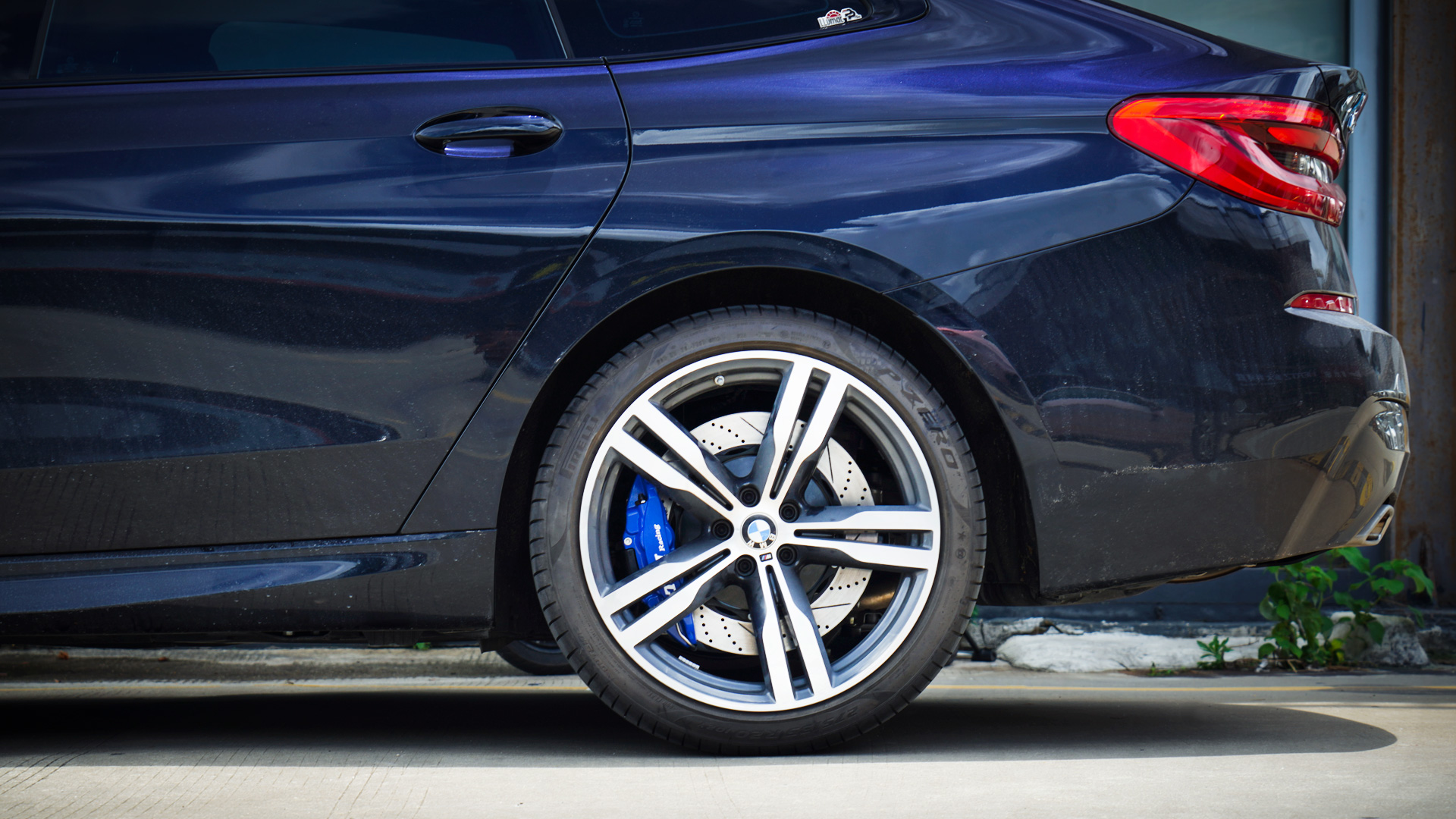

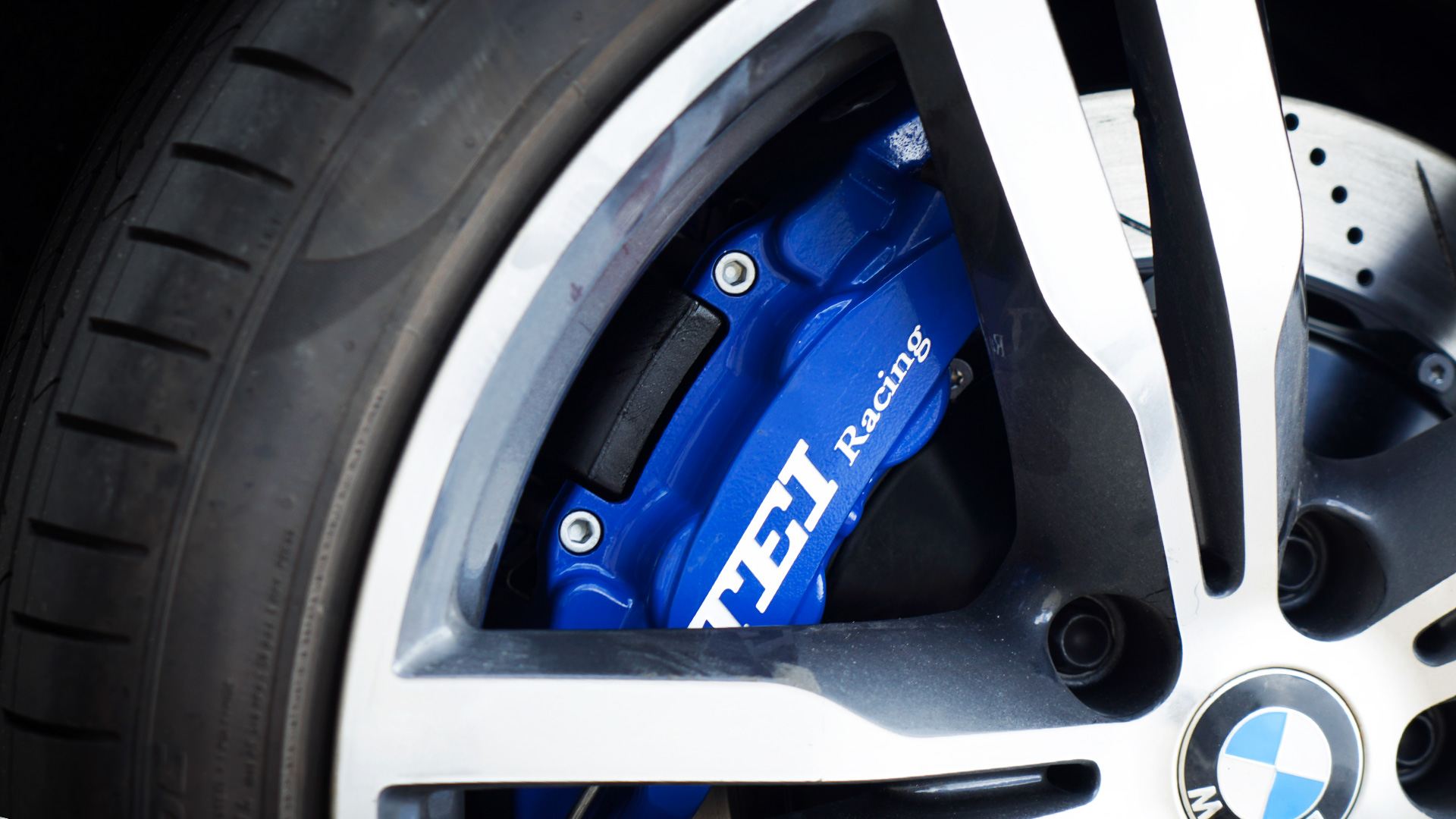

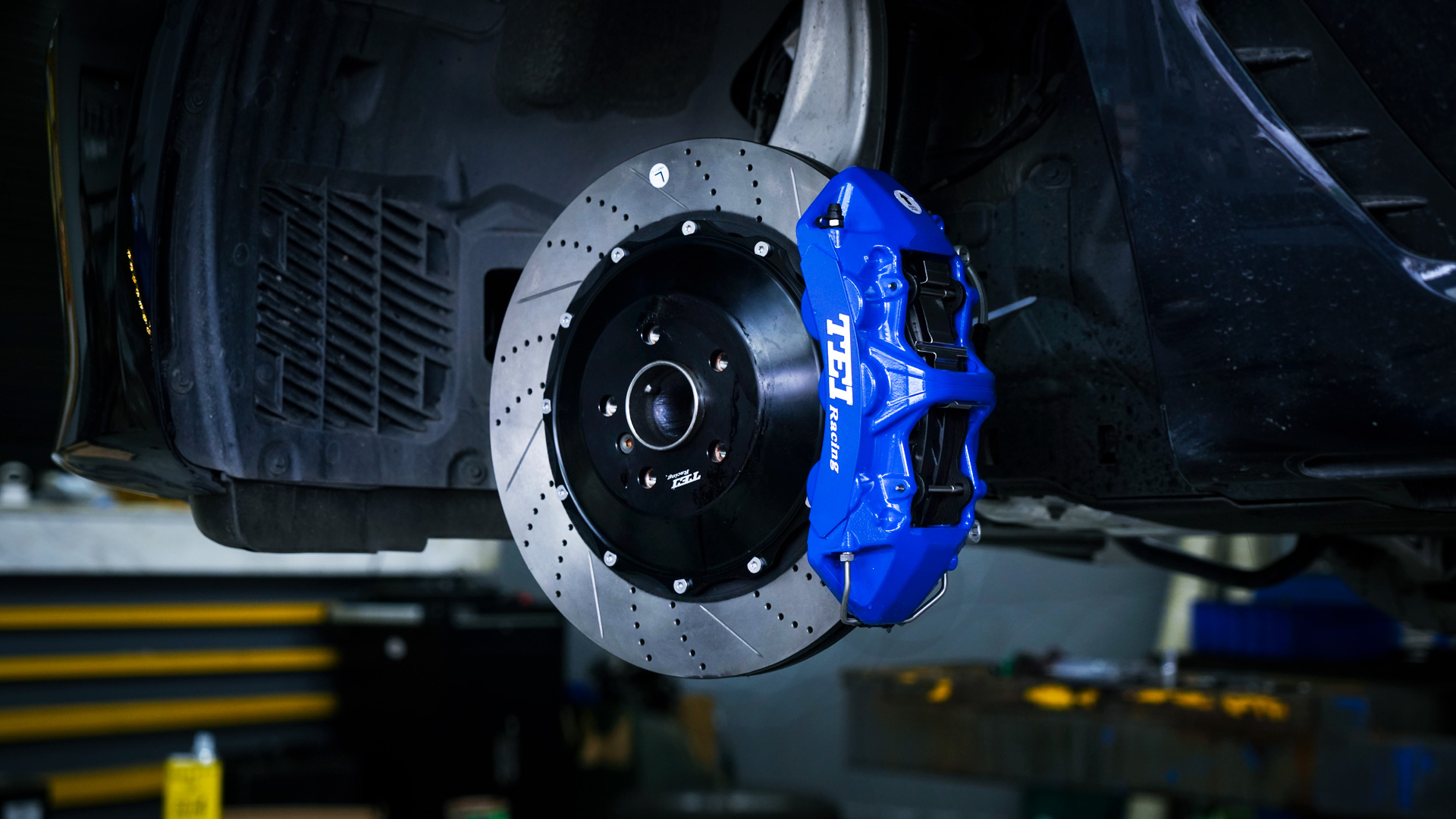

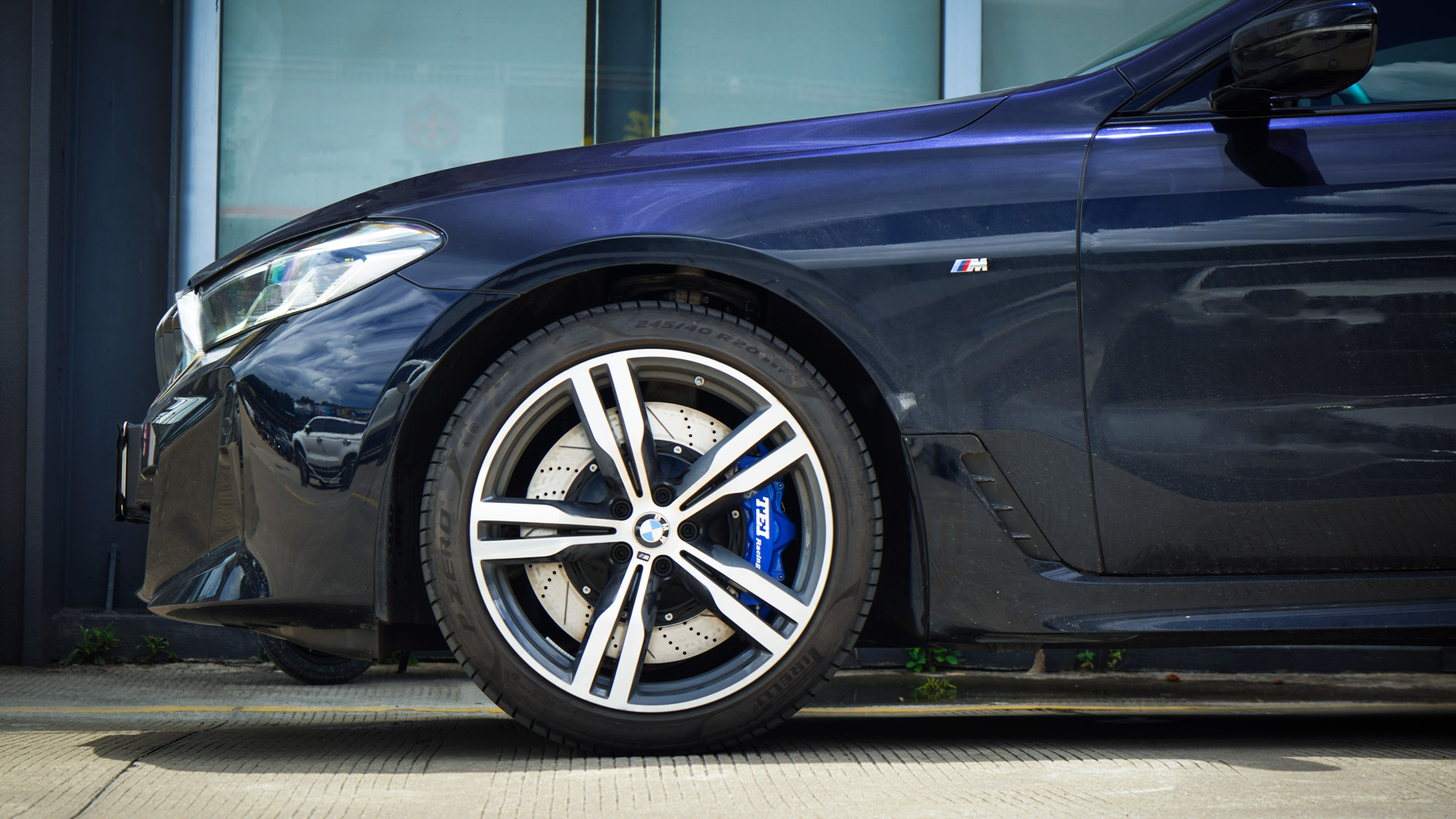

Installation Case
| Installation Case Brake Kit Information |
| Car Model | BMW 6 SERIES GT G32 2016+ year |
| Front | Rear |

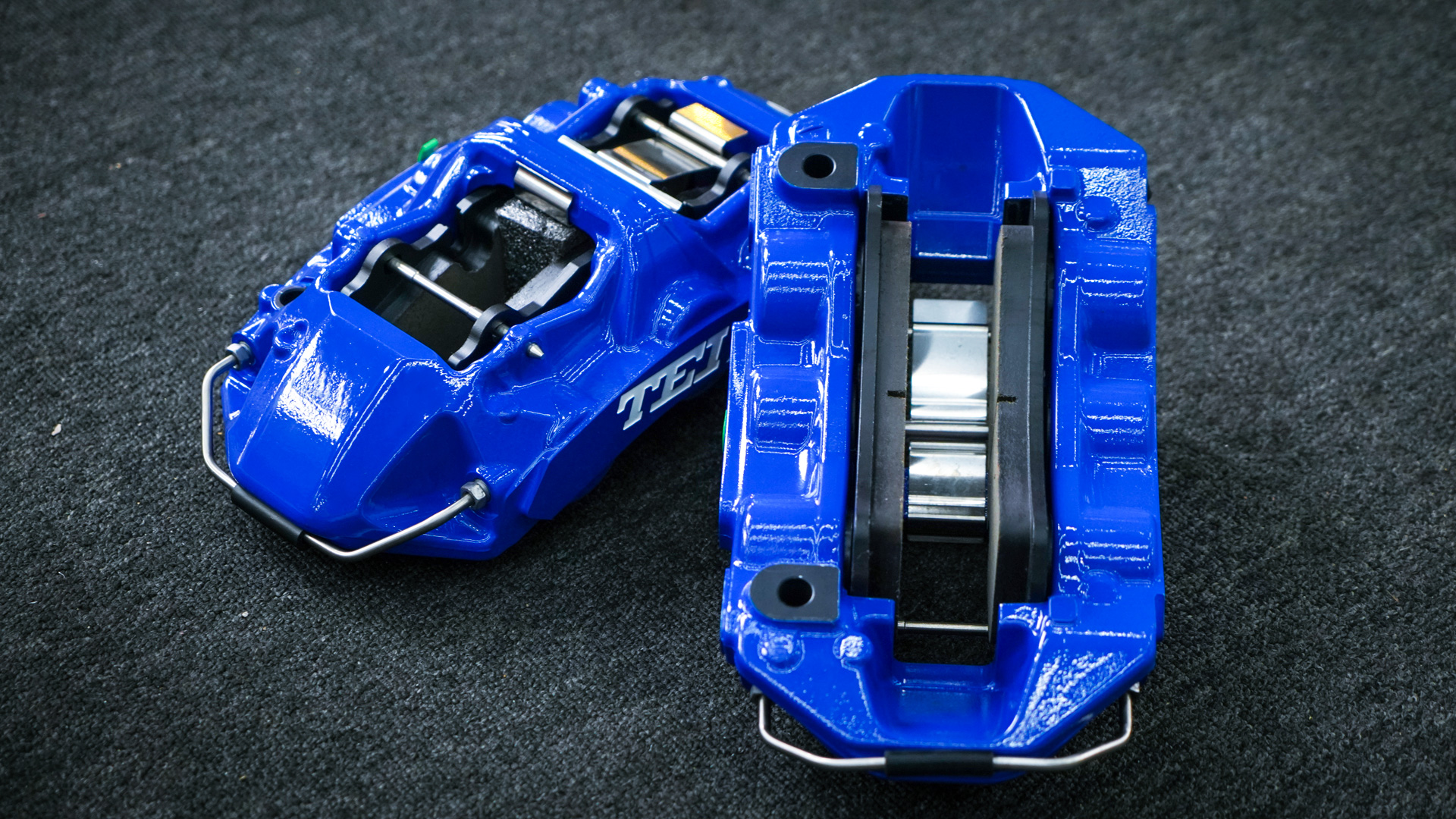

| TEI Caliper Model |
S60 |
P4-EXPLORE |
| Caliper Color | Blue | Blue |
| Rotor Size | 405X34 MM | 380X28 MM |
| Rotor Style | DRILLED AND SLOTTED | DRILLED AND SLOTTED |
| Bolt Type | FIXED | FIXED |
| Brake Pad Type | SPPA | SPPA |
Noted:1.You can click the caliper model to check the products
information.For example,You can click S60 to check the S60 brake kit information.
2.SPPA=Normal Ceramics Brake Pad,SPPL=Normal Metal Brake Pad
SSS,XSS,MSS=Racing Metal Brake Pad |
FAQ
Q1:Is your company a manufacturer?
A1:Yes,we are the manufacturer.
Q2:How do I know if your product is suitable for my car?
A2:You can tell me your car information to our sales and we will
check the fitment for you.Because there are many factors involved
in determining whether our product is suitable for your car.
Because our company have many car tuning shops in China and we have
installed many car models.So we can find the parameters of your car
by checking our database, and then produce a brake kit that suits
your car.
Q3:What if my car model is very rare?
A3:We have very professional data acquisition engineers and CNC
machining engineers.
We will send you a file of car data collection.
Then you provide us with the data according to the documents, and
we can also make products suitable for your car.
Q4:How do I know if I need to add spcaers when I install your brake
kit?
A4:You can tell us your car rim parameter and we check it for
you.Normally,if your rim ET value is more than 38,you need to add
the spacers.
Q5:After payment, when can I get the brake kit?
A5:For normal order,we need to take about 5-7 days to produce your
brake kit.For the customzied order,we need to take about 10-15 days
to finish the production.
As for the shipment time,7-12 days by express/25-45 days by sea
transportation/5-15 days by air/25-35 days by train
If you dont have logistic agent in China,you can tell us your
address and we check the shipment for you.
Q6:How can I pay?
A6:Bank Transfer,Paypel or Western Union.We also have online store
on Alibaba or Aliexpress.You also can place the order by them.
