TEI Racing P60NS 6piston Big Brake Kit for Performance Cars FRONT
wheel
| Product Type | P60NS Front Brake Kit |
| Piston Quality | 6 Piston |
| Piston Area | 52.41 cm2 |
| Piston Material | 6061 Alumium Alloy |
| Caliper Parameter | 350 X 160 X 96 MM |
| Caliper Weight | 3.96 KG/pcs |
| Caliper Material | Aerial |
| Manufacuring Craft | By Forging+CNC |
| Color Finish Treatment | High-temperature Baking Coating |
| Optional Colors | Red/Yellow/Sliver/Customized as required |
| Fitting Wheel Size | 18/19 Inch |
| Fitting Disc Size | 355/378 X 32 mm |
| Brake Disc Rotor(Disc+Center Hub) |
| Disc Material | High-Carbon Iron |
| Disc Craft | By casting |
| Plane Bounce | <0.03 mm |
| Center Hub Material | Aerial aluminum alloy |
| Center Hub Craft | By CNC manufacturing |
| Center Hub Color | Black/Sliver or Customized as required |
| Adapter+Brake line+Brake pads |
| Adapter Material | Aerial aluminum alloy |
| Adapter Craft | By CNC manufacturing |
| Adapter Color | Black/Sliver/Customized |
| Brake Pad Material | Ceramic+Graphite |
| Brake Pad Friction Coefficient | 0.38-0.42(Ceramic)/0.42-0.48(Metal) |
| Brake Pad Size | 190 X 87.5 X 16.6 mm |
| Brakeline Material | Steel wire outside and special rubber inside |
| Heat-Resistant | 0-700 Degree |

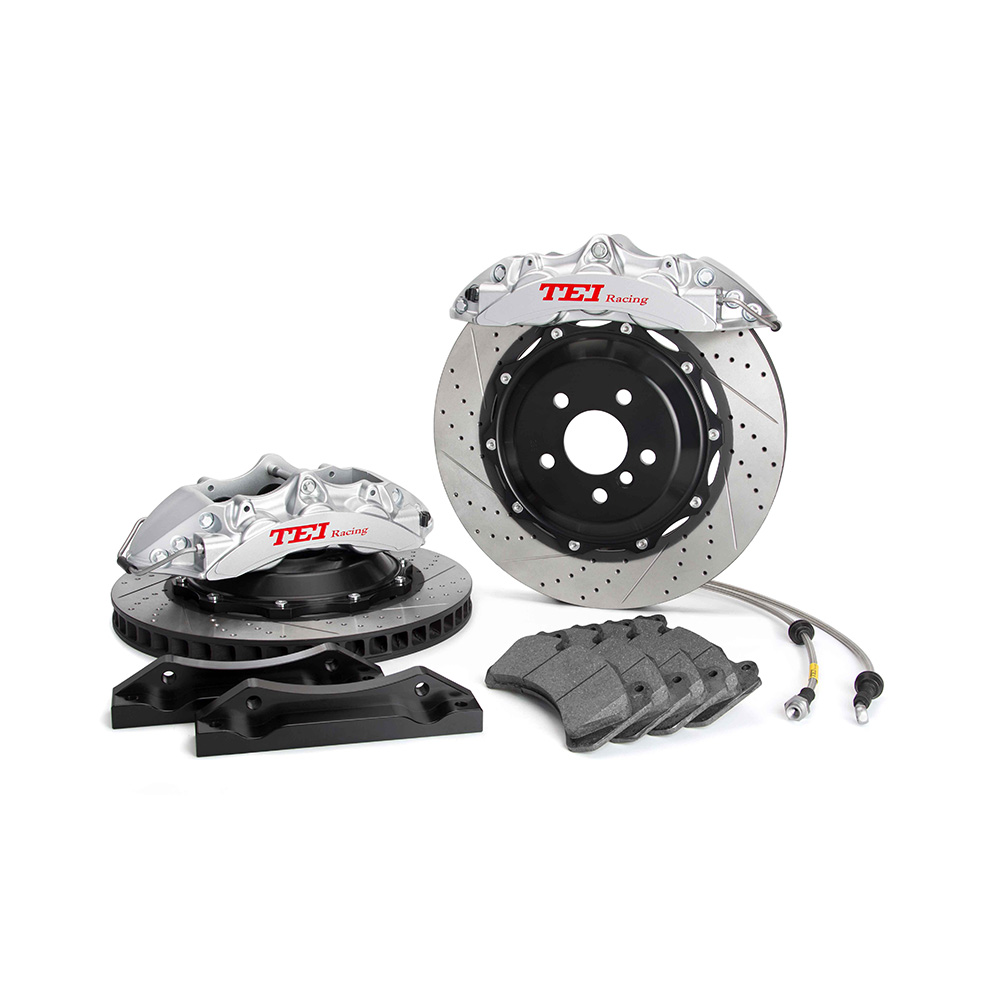

2x Calipers ( Red/Blue/Yellow/Green/Black/Silver)
2x Disc(Drilled/Slotted/Drilled and Slotted)
2x Brake lines
2x Adapters
2x Center hub( hat)
4x Brake pads
The P -series brake kit has been loved by the majority of car
owners since
the introduction of domestic brakes. Tei Racing has done a better
product
experience in domestic riders. Therefore, the official third
-generation upgrade
model P60NS has done A lot of upgrades, comprehensively improving
car
braking performance!
The new P60NS uses the third -generation new design language,
making
it larger and more visually impact. The shape is simple and the
lines are
more prominent. The matching area of the brake pads increases by
20%
compared to the previous generation of the P series, and the brake
performance
improves 13%, effectively shorten the brake braking distance!
This caliper requires 18 inches and above wheels to install. The
corresponding disc size is:
355*32mm and 378*32mm.

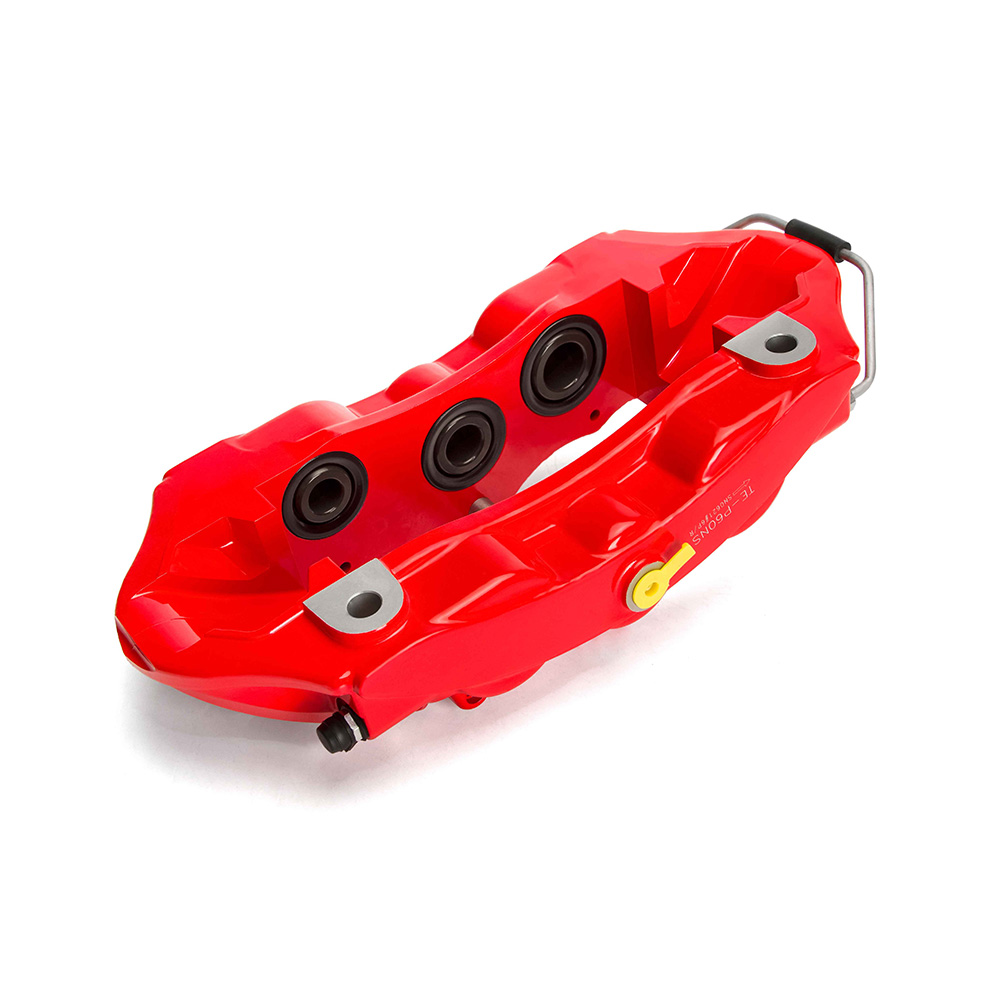

The new P60NS has made a lot of improvements in the appearance of
caliper.
First of all, the new spraying process is used to make the paint
surface brighter.
At the same time, the spray -plastic paint process can keep the
color longer.
Similarly, in terms of materials, the high -strength 6082 aerospace
aluminum
alloy T6 thermal treatment process forging is used. Under the
coaxial processing
of high -precision CNC, the two components are accurately combined
into a
two -piece forging caliper, which greatly reduces it. The vibration
generated
during braking improves the durability and safety of the product.
The improvement part of the more noteworthy is the piston. The
interior not
only uses dual oil sealing, but also uses external dust covers.
While enhancing
the sealing, it greatly reduces the chance of braking in the piston
work parts in
daily use in daily use, reducing the maintenance cost of the later
period.
The piston area is 52.41cm².
The overall lightweight hollow design, the weight of a single
calipers is about
3.96kg, which reduces the weight of the spring while ensuring the
strength.
The design of the oil circuit in the bottom of the oil pipe and
calipers has
also been improved. The design is more linear! Real the effect of
braking
control that you want.
Lighter, stronger, safer
Metal the highest criterion without compromise on every detail ...
