S60-EXPLORE 6 PISTON CALIPER FRONT HIGH PERFORMANCE BRAKE KIT WITH
355 378 405 MM DISIC FOR 18 INCH CAR AND ABOVE
S60-EXPLORE 6 PISTON CALIPER RACING VERSION BRAKE KIT
| Product Type | S60-EXPLORE Front Brake Kit |
| Piston Quality | 6 Piston |
| Piston Area | 54.95 cm2 |
| Piston Material | Alumium Alloy |
| Caliper Parameter | 360 X 175 X 115 MM |
| Caliper Weight | 4.475 KG/pcs |
| Caliper Material | Aerial |
| Manufacuring Craft | By Forging+CNC |
| Color Finish Treatment | High-temperature Baking Coating |
| Optional Colors | Red/Yellow/Sliver/Customized as required |
| Fitting Wheel Size | 18/19/20 Inch |
| Fitting Disc Size | 355/378/405 X 32/34 mm |
| Brake Disc Rotor(Disc+Center Hub) |
| Disc Material | High-Carbon Iron |
| Disc Craft | By casting |
| Plane Bounce | <0.03 mm |
| Center Hub Material | Aerial aluminum alloy |
| Center Hub Craft | By CNC manufacturing |
| Center Hub Color | Black/Sliver or Customized as required |
| Adapter+Brake line+Brake pads |
| Adapter Material | Aerial aluminum alloy |
| Adapter Craft | By CNC manufacturing |
| Adapter Color | Black/Sliver/Customized |
| Brake Pad Material | Ceramic+Graphite |
| Brake Pad Friction Coefficient | 0.38-0.42(Ceramic)/0.42-0.48(Metal) |
| Brake Pad Size | 190 X 87.5 X 16.6 mm |
| Brakeline Material | Steel wire outside and special rubber inside |
| Heat-Resistant | 0-700 Degree |
1 Full kit included
2 x Calipers
2 x Discs
2 x Rotor Hat
2 x Brake Lines
4 x Brake Pads
2 x Adapters( Brackets)
After the success of the S series brake kit of Tei Racing, Tei
Racing brought
the same design concept.This new six -piston integrated forging
caliper combines
Tei Racing innovation technology. Users who are pursuing street
performance can
experience the excellent track performance provided by integrated
forging caliper.
Compared with the design of a generation of S60 caliper, the
S60-EXPlore has higher
strength and lightweight and better cooling characteristics. It has
a highly impactful
appearance painting, representing a major innovation of Tei Racing
performance
brake caliper.
In addition, calipers also have all the functions required by
street calipers,
including internal dust -proof sealing rings, antioxidant, high
-temperature
-resistant nickel -plating appearance coating and reducing noise
solutions.
In order to further enhance the user experience, Tei Racing also
provides
a series of Carbon Ceramics brake disks, high -performance brake
pads
and DOT5.1 brake oil to achieve the best performance and comfort.
The 2nd generation calories have stronger rigidity applications for
high -performance
models, as well as large off -road vehicles, such as 4X4, SUV and
pickup truck applications.
The latest S series provides the most eye -catching nickel -plated
appearance,
with antioxidant, fast heat dissipation and high temperature
resistance.
At the same time, the red logo adopts carving design to highlight
the car style.

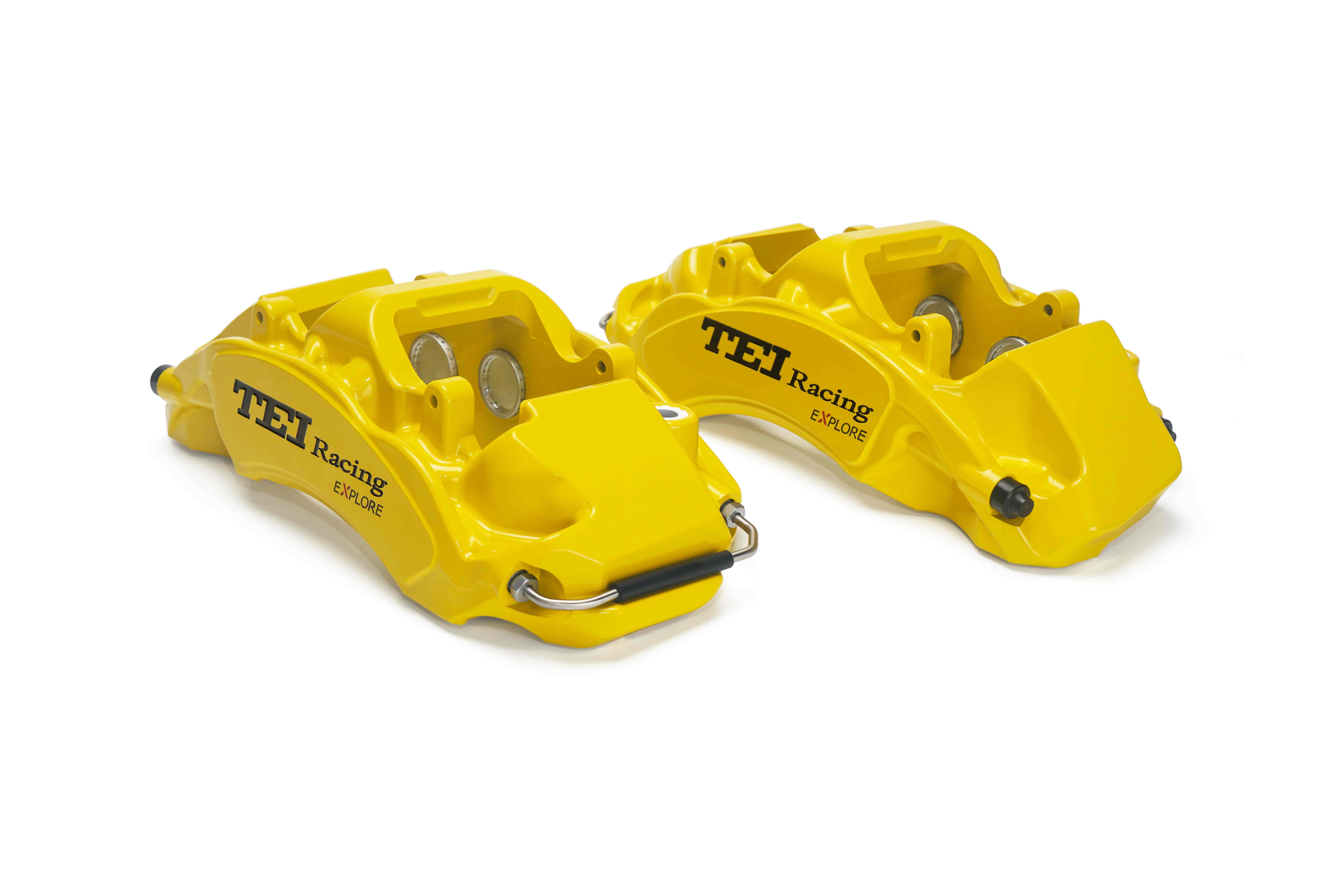

The S60-EXPLORE six-piston brake calipers, the caliper body is made
of
aviation aluminum alloy 7075, which is designed and produced with
the
latest forging technology integrated forming and precision
processing.
It has a strong structural design.
The surface is carved with CNC refinement. The overall lightweight
hollow design.
The weight of a single caliper is about 4.475kg. At the same time,
the weight of
the spring is reduced to ensure the best state of the vehicle
performance.
At the top of the stainless steel caliper piston, the piston
cooling design specially
used in the track series calipers can more effectively block the
heat transmission
of the brake skin and the brake oil room to achieve the cooling
effect.
The dual sealing ring system inside the piston uses a high
-temperature polymer
sealing ring and is inlaid inside the calipers to provide a
smoother piston movement for calipers.
The total area of the piston is 54.95cm², and the piston diameter
is ø30, ø34,
and ø38mm piston -to -pistons. While increasing the sensitivity of
the brakes,
it can provide the best braking performance and handling to make
the foot feel more linear.
The S60-EXPLORE brake caliper provides two types of brake discs for
different
customers to choose from: high temperature treatment of high-carbon
alloy brake
discs; carbon ceramic composite material brake discs.
Suitable for installation of 19 -inch and above hub, corresponding
to the dish
specifications: 355 × 32mm, 378 × 32mm, 405 × 34mm.
Normally,we will prepare ceramics brake pad for you,because the
advantages.
The advantage of ceramic brake pads is that the sound of the brake
is small and less dusty.
But many car owners drove very fast, so we also prepared metal
brake pads.
If you usually drive more than 150km/h, we recommend that you
choose a metal brake pad.
Q1:Is your company a manufacturer?
A1:Yes,we are the manufacturer.
Q2:How do I know if I need to add spcaers when I install your brake
kit?
A2:You can tell us your car rim parameter and we check it for
you.Normally,if your rim ET value is more than 38,you need to add
the spacers.
Q3:How can I pay?
A3:Bank Transfer,Paypel or Western Union.We also have online store
on Alibaba or Aliexpress.You also can place the order by them.
