TEI Racing P60ES 6 piston Big Brake Kit for Performance Cars FRONT
wheel
| Product Type | P60ES Front Brake Kit |
| Piston Quality | 6 Piston |
| Piston Area | 50.06 cm2 |
| Piston Material | 6061 Alumium Alloy |
| Caliper Parameter | 325 X 151 X 85 MM |
| Caliper Weight | 3.95 KG/pcs |
| Caliper Material | Aerial |
| Manufacuring Craft | By Forging+CNC |
| Color Finish Treatment | High-temperature Baking Coating |
| Optional Colors | Red/Yellow/Sliver/Customized as required |
| Fitting Wheel Size | 18/19 Inch |
| Fitting Disc Size | 355/378 X 32 mm |
| Brake Disc Rotor(Disc+Center Hub) |
| Disc Material | High-Carbon Iron |
| Disc Craft | By casting |
| Plane Bounce | <0.03 mm |
| Center Hub Material | Aerial aluminum alloy |
| Center Hub Craft | By CNC manufacturing |
| Center Hub Color | Black/Sliver or Customized as required |
| Adapter+Brake line+Brake pads |
| Adapter Material | Aerial aluminum alloy |
| Adapter Craft | By CNC manufacturing |
| Adapter Color | Black/Sliver/Customized |
| Brake Pad Material | Ceramic+Graphite |
| Brake Pad Friction Coefficient | 0.38-0.42(Ceramic)/0.42-0.48(Metal) |
| Brake Pad Size | 148.8 X 82 X 17 mm |
| Brakeline Material | Steel wire outside and special rubber inside |
| Heat-Resistant | 0-700 Degree |

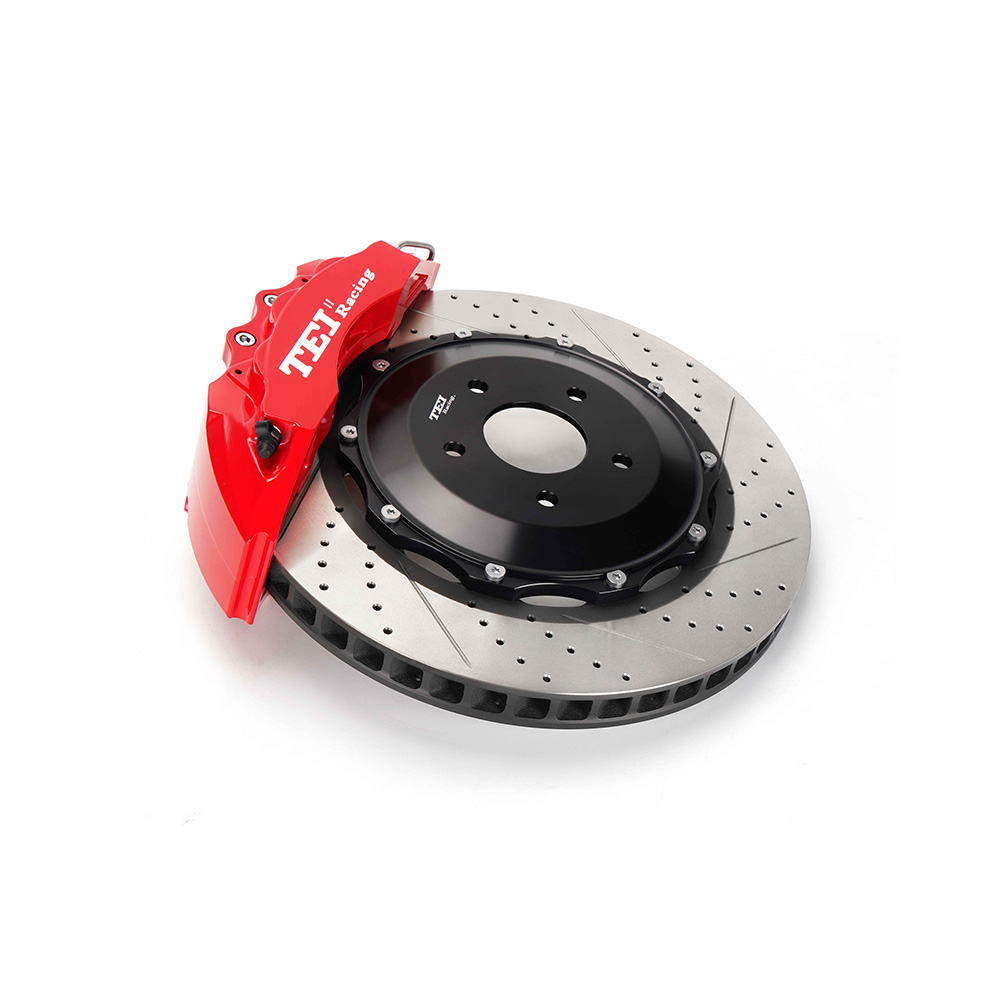

2x Calipers ( Red/Blue/Yellow/Green/Black/Silver)
2x Disc(Drilled/Slotted/Drilled and Slotted)
2x Brake lines
2x Adapters(Bracket)
2x Center hub(Rotor Hat)
4x Brake pads
As the power of the car is getting larger and larger, the
requirements for braking
are getting higher and higher. Tei Racing has always focused on the
field of security
braking. In order to further enhance the user experience, we
specially developed
a new fourth -generation P series and street performance brake
caliper kits around
the product concept of "enjoying peace and controlling it."
Optimized the matching
of product spare parts to reduce the chance of noise to achieve the
best performance and comfort.
In terms of cost performance, the P -series brake kit is second to
none. The new
fourth -generation P -series caliper P60ES is designed with smooth
lines.
The cool shape is bright in the field of braking. The face value is
online and colorful.
In terms of brake pads, high -end ceramic materials not only reduce
the chance of
noise generated by braking, but also increase the brake performance
10%compared
with the previous generation, effectively shorten the braking
distance!
This caliper is suitable for 18 inches and upper hubs, and it is
equipped with
a larger diameter brake disc 355*32mm and 378*32mm. You can see the
large
caliper through the gap between the wheel spoke bar, which can
achieve the
appearance and feeling of the super sports car at the same time.
The appearance of the calipers adopts a new high -temperature paint
process,
making the paint surface more bright and lasting. Even in harsh
environments,
there will be no fading or fading. At the same time, the logo
adopts relief design,
highlighting the brand's uniqueness.

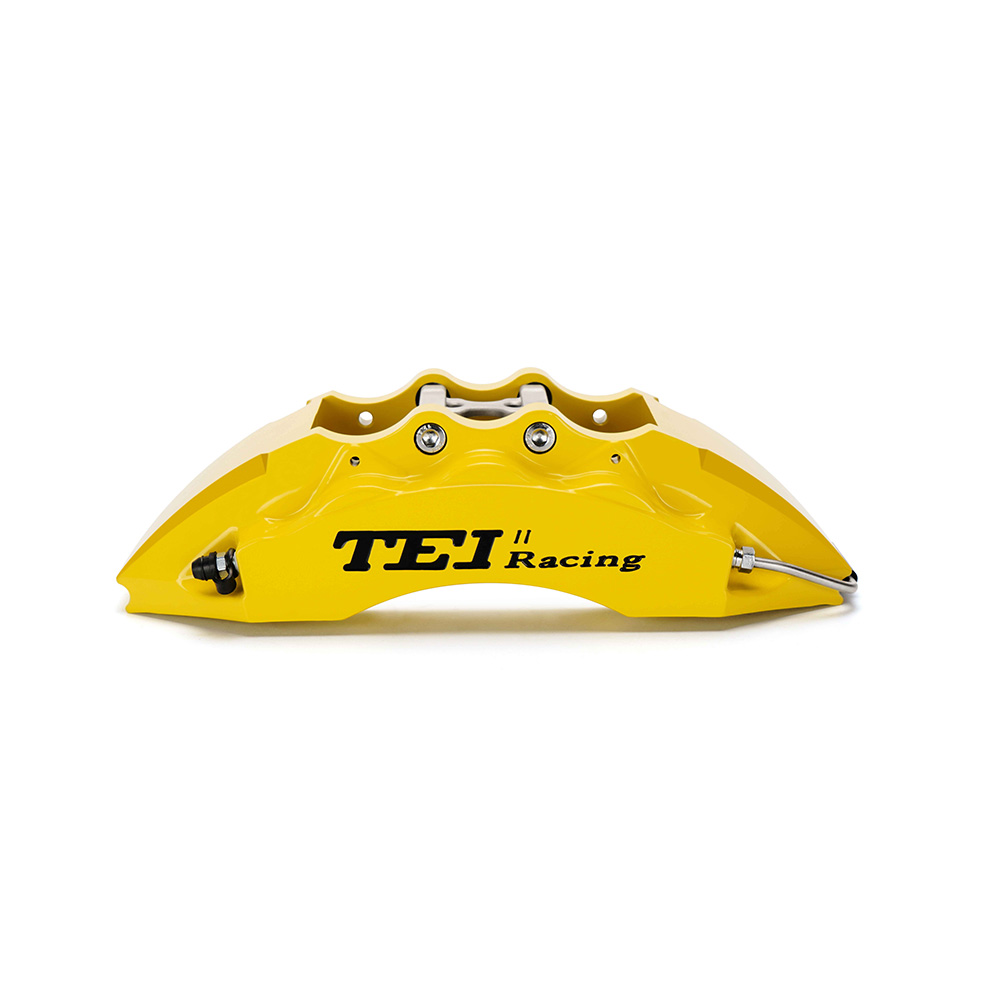

The calipers are forged from aviation aluminum alloy. Under the
coaxial processing
of high -precision CNC, this caliper is still a two -piece forging
design structure,
and the body is fixed on the back. The structure of some modified
caliper is
simple and atmospheric, which is shiny.
Symmetric six -piston design, consisting of three different
diameter of 6 pistons.
The diameter of the piston is 27mm/31.8mm/38mm. The piston fuel
supply area is 50.06cm². , Eliminating everyone's doubts about the
long feet of the brakes, the brake itinerary is soft.
The piston structure adopts an external dust cover and the internal
sealing ring,
which enhances the sealing and reduces the impact of dust such as
dust.
The overall lightweight hollow design of the calipers, the weight
of a single
calipers is about 3.9kg, which reduces the weight of the vehicle
while ensuring
the strength. Make the car control more flexible!
The brake disc is made of high -carbon cast iron and passed through
heat
treatment. Even under bad braking conditions, it is still strong,
and there will
be no deformation and cracking. Due to the special heat -resistant
and anticorrosive
coating, it reliably inhibits rust and efficient heat dissipation
to prevent overheating.
As a result, the excellent braking performance and long service
life of the brake disc
and brake pads are ensured.
