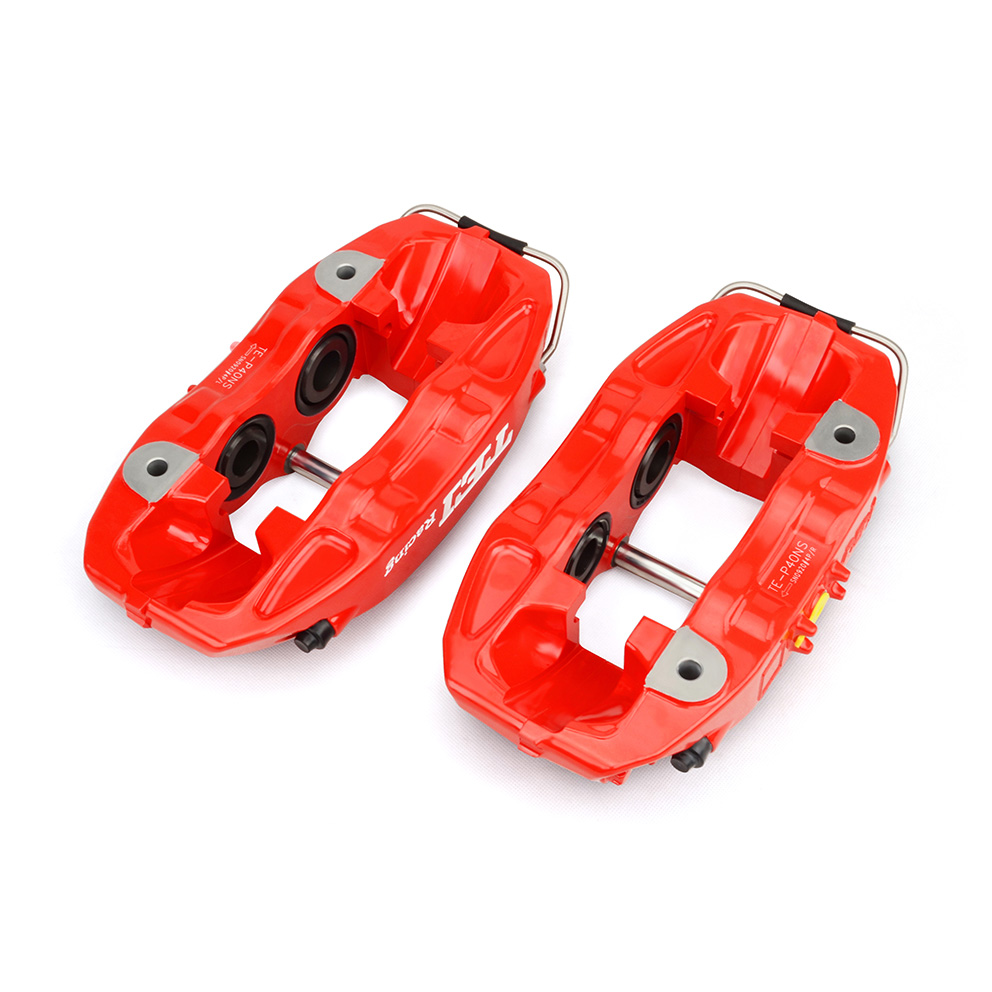

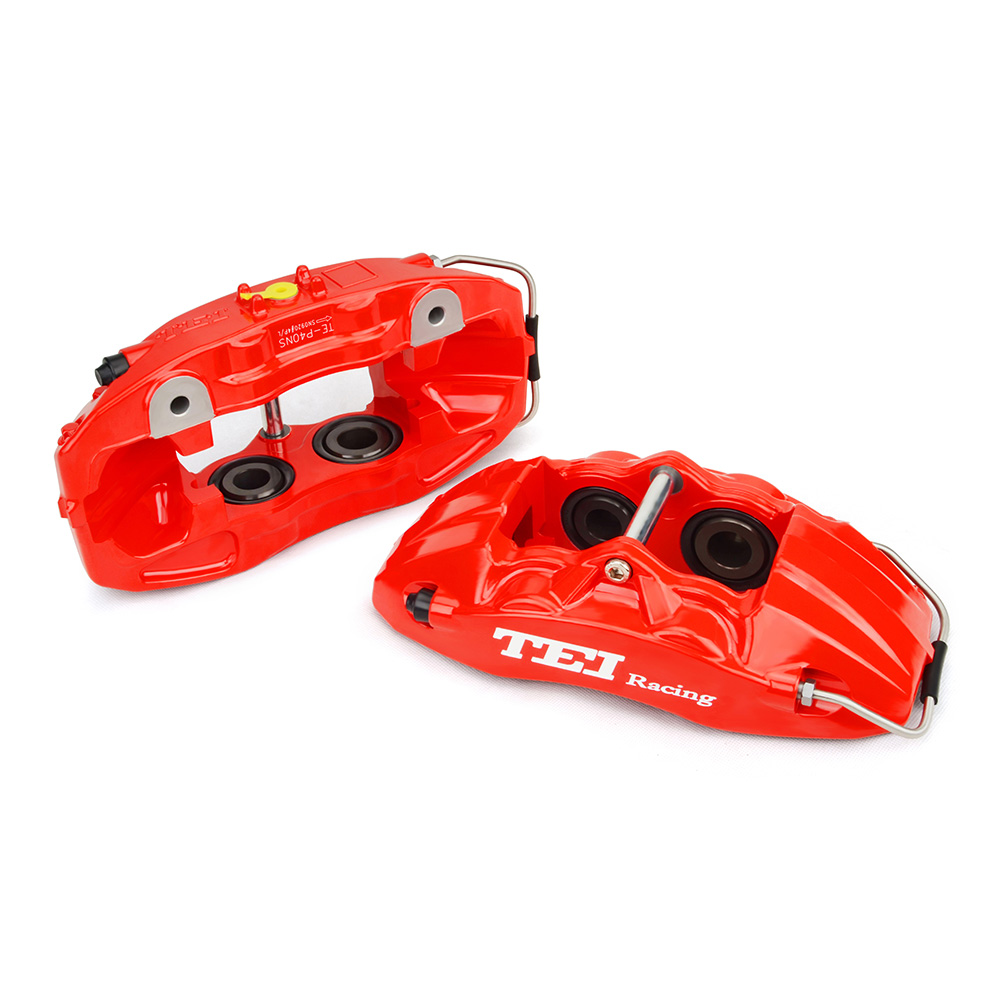

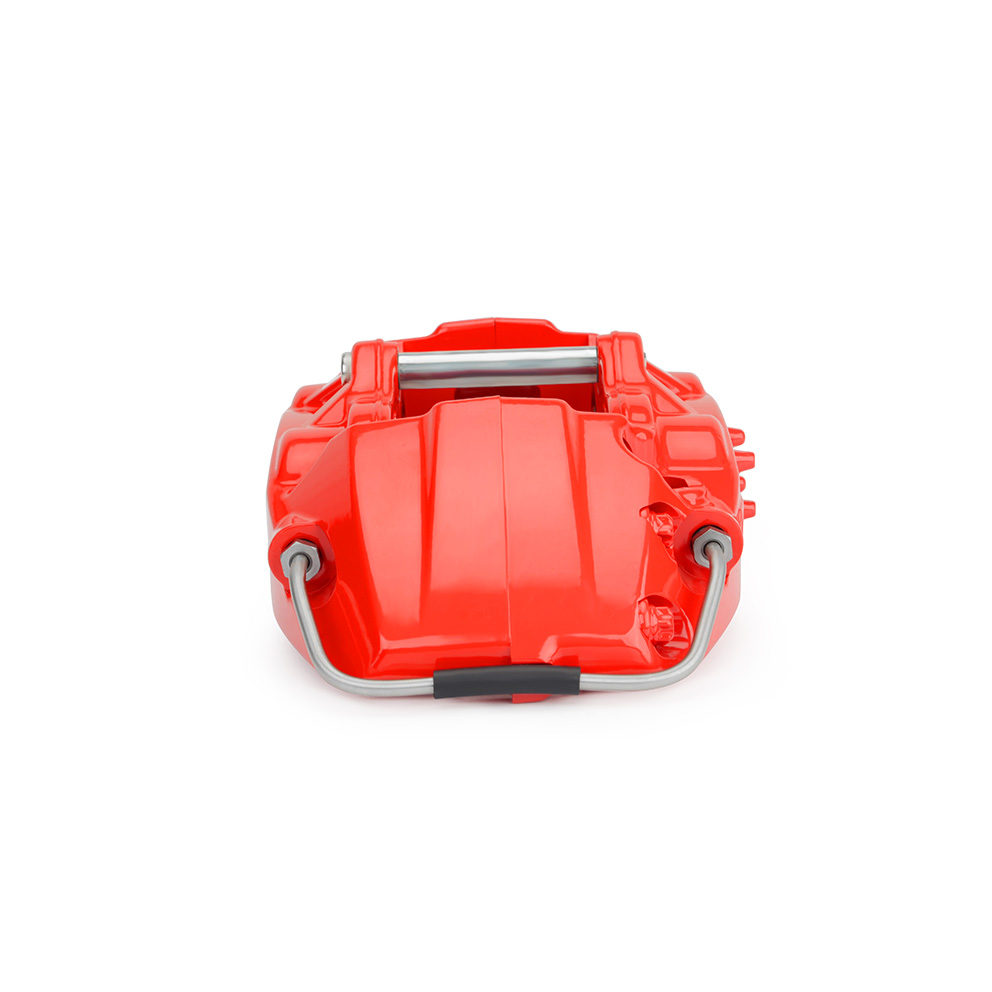

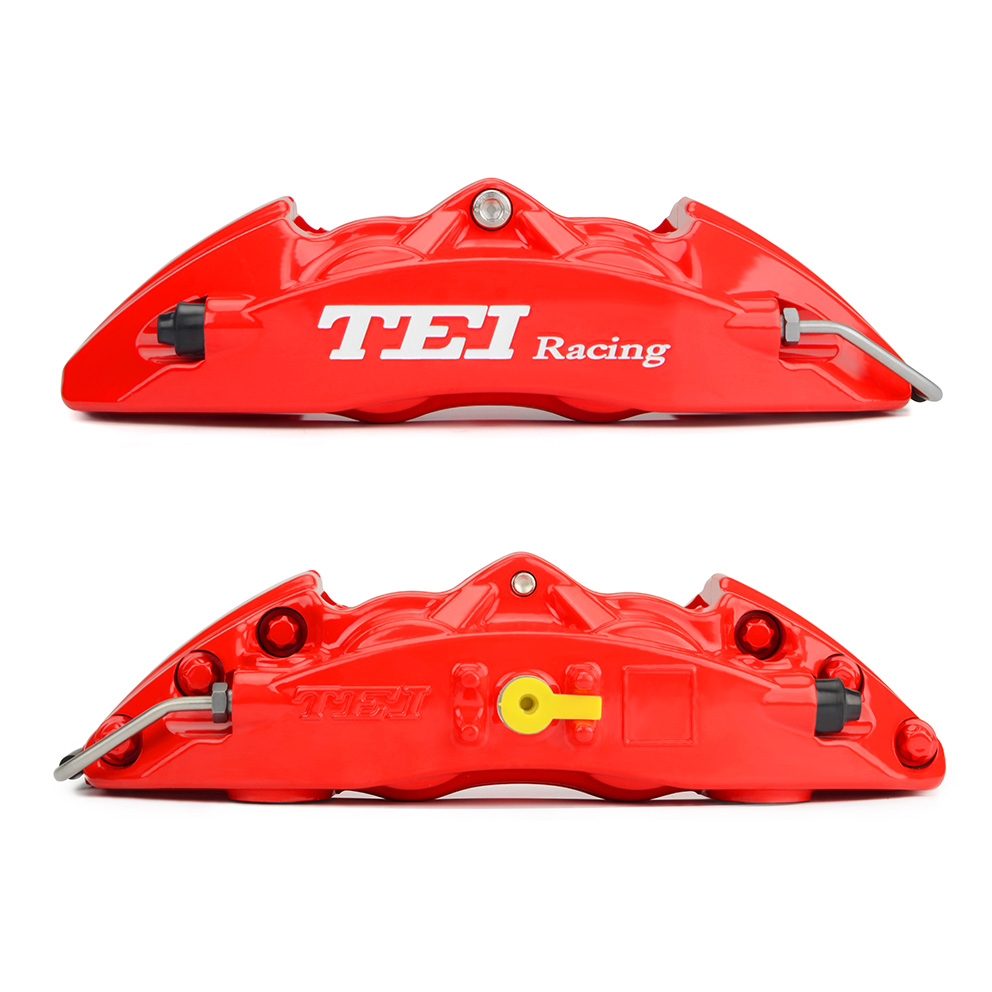

P40NS 4 PISTON CALIPER WITH 300/330*28 MM DISC FRONT BRAKE KIT
| Product Type | P40NS Front Brake Kit |
| Piston Quality | 4 Piston |
| Piston Area | 49.56 cm2 |
| Piston Material | Alumium Alloy |
| Caliper Parameter | 291 X 143 X 81 MM |
| Caliper Weight | 3.1 KG/pcs |
| Caliper Material | Aerial |
| Manufacuring Craft | By Forging+CNC |
| Color Finish Treatment | High-temperature Baking Coating |
| Optional Colors | Red/Yellow/Sliver/Customized as required |
| Fitting Wheel Size | 16/17 Inch |
| Fitting Disc Size | 300/330 X 28 mm |
| Brake Disc Rotor(Disc+Center Hub) |
| Disc Material | High-Carbon Iron |
| Disc Craft | By casting |
| Plane Bounce | <0.03 mm |
| Center Hub Material | Aerial aluminum alloy |
| Center Hub Craft | By CNC manufacturing |
| Center Hub Color | Black/Sliver or Customized as required |
| Adapter+Brake line+Brake pads |
| Adapter Material | Aerial aluminum alloy |
| Adapter Craft | By CNC manufacturing |
| Adapter Color | Black/Sliver/Customized |
| Brake Pad Material | Ceramic+Graphite |
| Brake Pad Friction Coefficient | 0.38-0.42(Ceramic)/0.42-0.48(Metal) |
| Brake Pad Size | 132 X 67 X 18 mm |
| Brakeline Material | Steel wire outside and special rubber inside |
| Heat-Resistant | 0-700 Degree |
2x Calipers ( Red/Blue/Yellow/Green/Black/Silver)
2x Disc(Drilled/Slotted/Drilled and Slotted)
2x Brake lines
2x Adapters
2x Center hub( hat)
4x Brake pads
The P -series brake kit has been loved by the majority of car
owners since
the introduction of domestic. Tei Racing has made more improvement
and
improvement on the basis of the 2nd generation P series brake
products to
provide a better product use experience in domestic riders. ,
Comprehensively
improve car braking performance!
The new family design language, realize visual significant, more
visual impact,
fashion and line design beauty!
Forging caliper adopts a dual -chip structure, the structural
design is closely
matched, and the machining of the coaxial axis allows the dual
-chip component
to accurately combine. The two components are locked by a high
-intensity bolt
to compose a compound double -piece forging caliper.
The improvement part of the new P40NS is the piston, and the dual
sealing
circle is used inside, and the piston part is added to the
dustproof set.
Increased dust -proof sets greatly reduced the probability of
brakes entering
the piston in actual application. Improve the effectiveness of the
piston in the use of brakes.
Lightweight hollow design, the calipers are only 3.1kg, ensuring
that the
maximum intensity is reduced to reduce the weight of the lower
spring,
carrying stronger performance with the smallest space, and adapting
most of the wheels.
The appearance adopts a new plastic paint process, and the surface
of the
calipers is brighter and longer.
